Build an X++ AI Tool for Copilot Studio in Dynamics 365 F&O

Welcome to article 2 in the Copilot Studio series! Want Copilot Studio to run real F&O business logic? Build a simple X++ AI tool and wire it in.

Here’s the idea: Copilot Studio gets truly useful when it can run your real F&O business logic on demand. The fastest way to do that today is with an X++ AI tool: a small data contract class exposed as a custom API in Dataverse that can be called from Copilot Studio.

In this walkthrough, we’ll build a minimal example (look up a customer’s name by account number) to show the pattern end-to-end. You’ll see how to create the class and attributes, set up the right security (menu item, privilege, role), deploy to Dataverse, and configure the tool in Copilot Studio.

If you missed the first article in the series, read “Copilot Studio 101: Extend Dynamics 365 F&O Copilots“.

What’s an X++ AI tool?

X++ AI tools are used to extend the capabilities of agents in Copilot Studio.

In X++, an AI tool is simply a data contract class! Alright, let’s learn how to create one.

Prerequisites

To follow the steps described in this article, I suggest using a UDE (Unified Developer Experience) environment. You won’t be able to test this on a local VHD-based VM.

Your Dataverse environment needs the following solutions:

• Finance and Operations Virtual Entity
• Copilot for finance and operations apps
• Copilot in Microsoft Dynamics 365 Finance or Copilot in Microsoft Dynamics 365 Supply Chain Management

In your Dynamics 365 F&O environment, you must enable the Custom API Generation feature if it’s not enabled by default.

Create the AI tool

For this example, I’ll be creating a class that runs a stupid functionality: return the customer’s name based on their customer account number. I know it’s not the craziest example of using cutting-edge AI technology.

I just want to show you the basics of creating an AI tool in X++, and then you can use it with your scenario!

Create a class

So first create a class. I’ll name mine AASCustomerNameCustomAPI. This class needs to implement the ICustomAPI interface.

We also must decorate it with these attributes:

• CustomAPI: this sets the name and description shown in Copilot Studio. Mine is [CustomAPI('Get the customer name', 'Returns the name of the customer based on their customer account number')].
• AIPluginOperation: nothing special, just use [AIPluginOperation].
• DataContract: and also nothing special, use [DataContract].

Next: input and output parameters. When we ask Copilot for something, it usually needs input data. In our case it’s the customer account number. So I’ll create a custAccount variable:

private CustAccount custAccount;

And then we expect a response from the bot. That’s our output parameter, and because for this example it’s the name, I’ll create a custName variable:

private Name custName;

Great! We need one more thing: a CompanyId variable! Why? As in many Dataverse/Power Platform integrations, the default company from your user info is used. Fortunately, we can get the current company where the request is being done from Copilot Studio, but we need a variable to then change the company if it’s not the same as the default one you have.

That’s why I also create a companyId member:

private CompanyId companyId;

As you may already be thinking, if the class is a data contract, these are our data members. And what do data members need? Their parm methods!

And because they’re AI tool data members, we need to decorate them with the CustomAPIRequestParameter for the request and CustomAPIResponseProperty for the response. They’ll look like this:

[
    CustomAPIRequestParameter('The company of the customer', true),
    DataMember("companyId")
]
public CompanyId parmCompanyId(CompanyId _companyId = companyId)
{
    companyId = _companyId;
    return companyId;
}

[
    CustomAPIRequestParameter('The customer account number', false),
    DataMember("custAccount")
]
public CustAccount parmCustAccount(CustAccount _custAccount = custAccount)
{
    custAccount = _custAccount;
    return custAccount;
}

[
    CustomAPIResponseProperty('The customer name'),
    DataMember("custName")
]
public Name parmCustName(Name _custName = custName)
{
    custName = _custName;
    return custName;
}

The CustomAPIRequestParameter attribute expects two parameters: the description of the field and a boolean indicating if the field is optional. You can see I’ve set the one for the companyId as true, meaning optional.

If we don’t provide a companyId value, the process will fail, but we’ll make sure that doesn’t happen when using the tool in Copilot Studio.

The CustomAPIResponseProperty attribute only expects one parameter: a description.

Now override the run() method that comes from the interface. This method contains the business logic that’s being triggered. Getting a customer name, that’s easy, right?

[Hookable(false)]
public void run(Args _args)
{
    changecompany(this.parmCompanyId())
    {
        CustTable custTable = CustTable::find(this.parmCustAccount());

        if (custTable)
        {
            this.parmCustName(custTable.name());
        }
    }
}

Build the class, and it’s ready. But there’s more to do!

Create the security objects

For X++ AI tools to work properly, we also need:

• An action menu item
• A security privilege
• A role for the privilege (and a duty if you prefer to use that). We must assign this role to the user chatting to the agent; otherwise, they won’t be able to access it.

Create the action menu item, set its Object Type property to Class, and the Object property to the name of the class we created before.

Create a new security privilege; I’ve called mine AASCustomerNameAPIAccess. Add the action menu item to the Entry Points node, and set its Access Level property to Create.

Finally, I’m creating a new role, also named AASCustomerNameAPIAccess, that has the AASCustomerNameAPIAccess security privilege in the Privileges node.

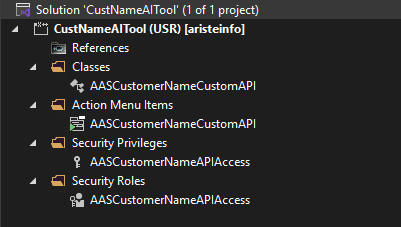

Your VS project should look like this:

Deploy the model to Dataverse

And because I’m in a UDE environment, I’m going to deploy the code to Dataverse.

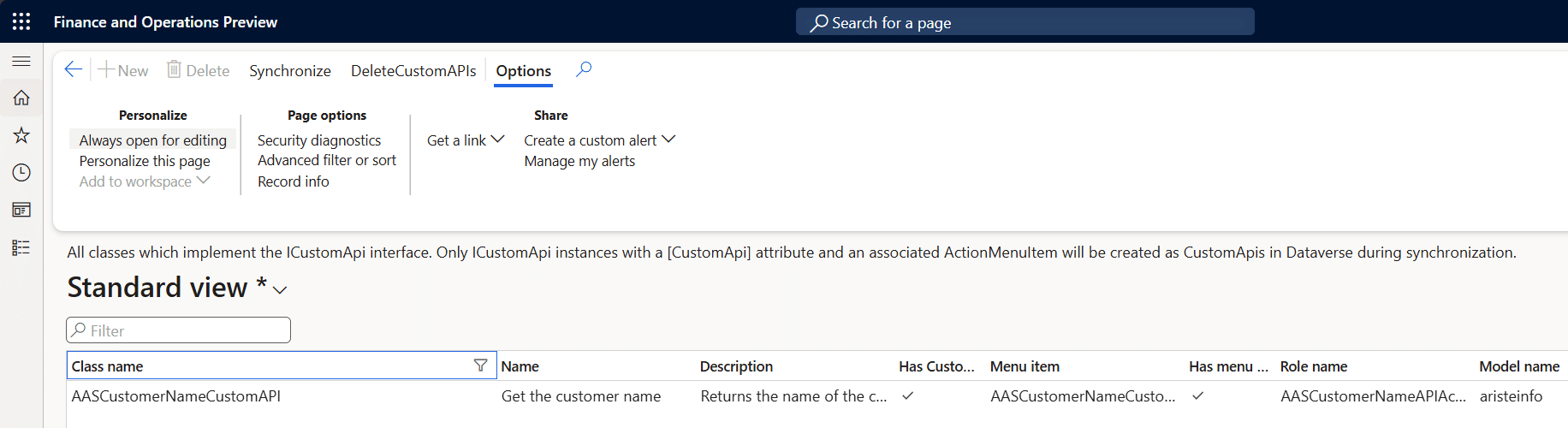

Once the deployment completes, you can go to F&O, System administration > Setup > Synchronize Dataverse Custom APIs, and look for your API:

If it’s there, you’re all set. If it isn’t, please verify that you’ve created and configured the menu item, privilege, and role or duty correctly. Also check that you haven’t missed adding any attribute in the data contract class or members!

Using the AI tool in Copilot Studio

Once the tool is ready, go to Copilot Studio to add it to our Copilot for finance and operations apps agent.

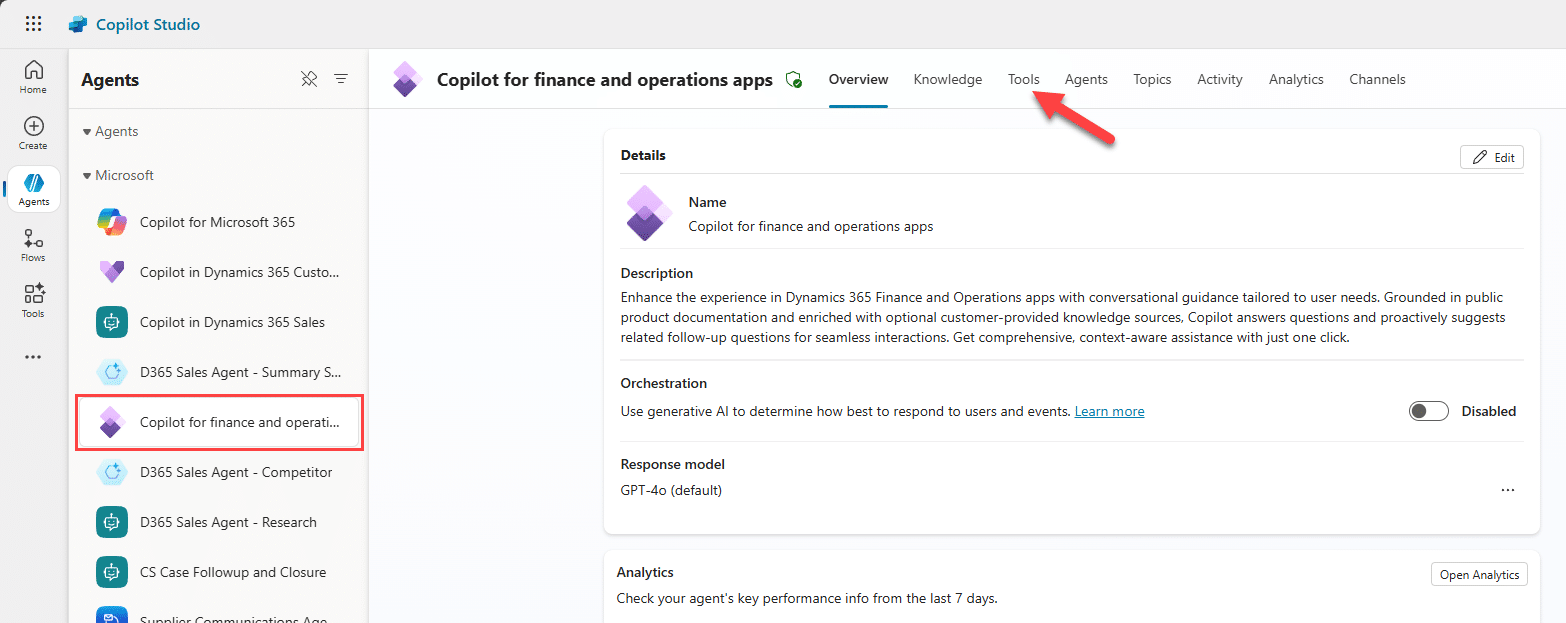

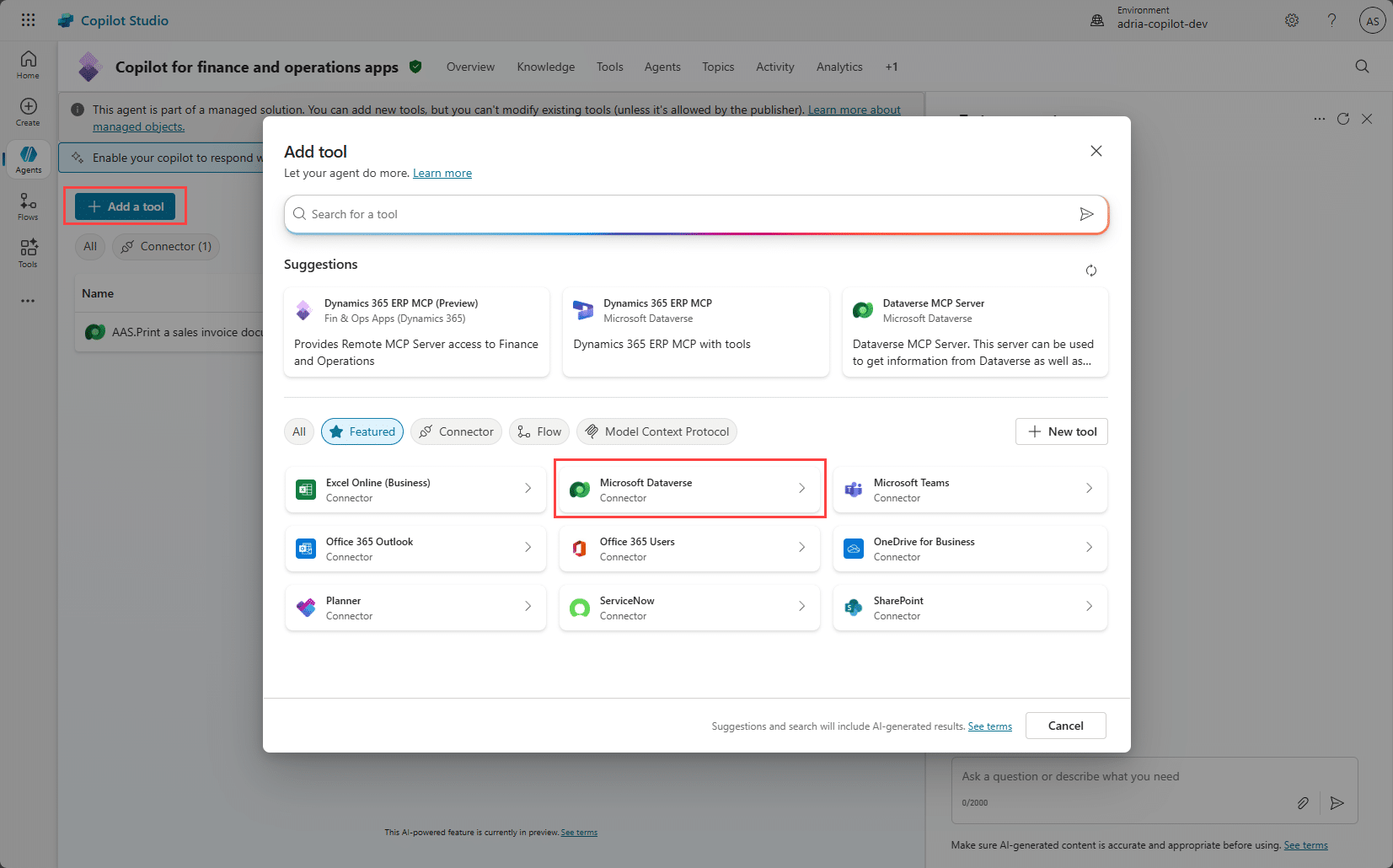

Make sure you select the correct environment, open the agent, and go to the Tools tab:

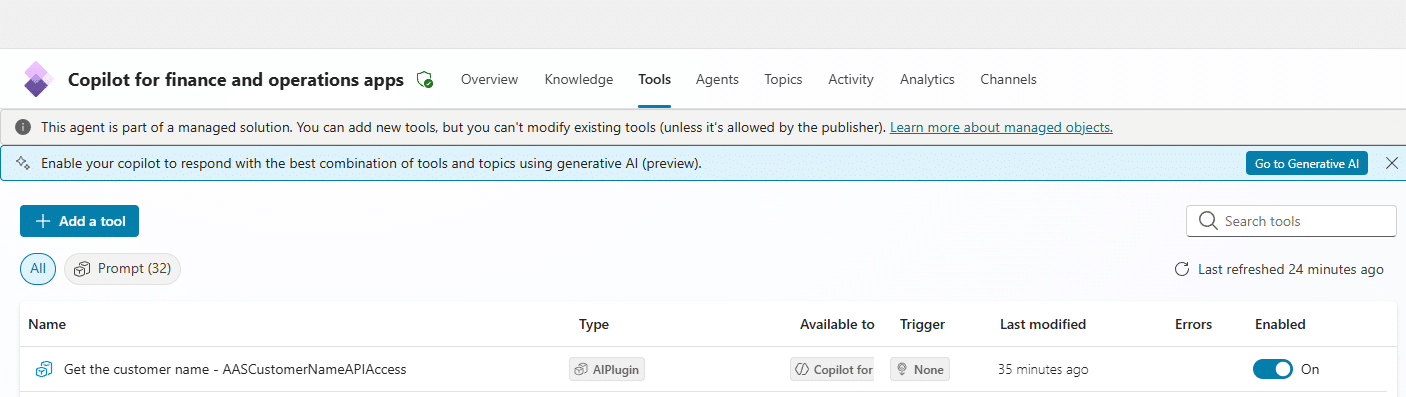

Here you should see your X++ AI tool, showing the name of the CustomAPI attribute:

Configure inputs

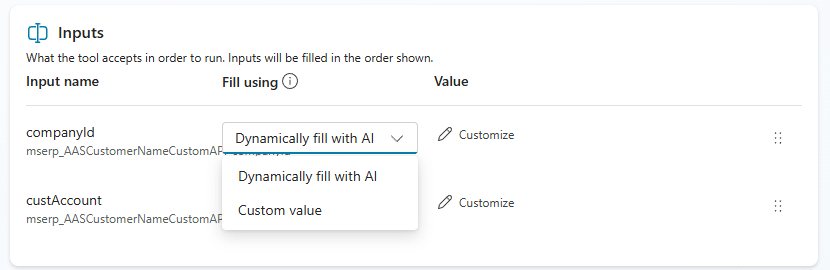

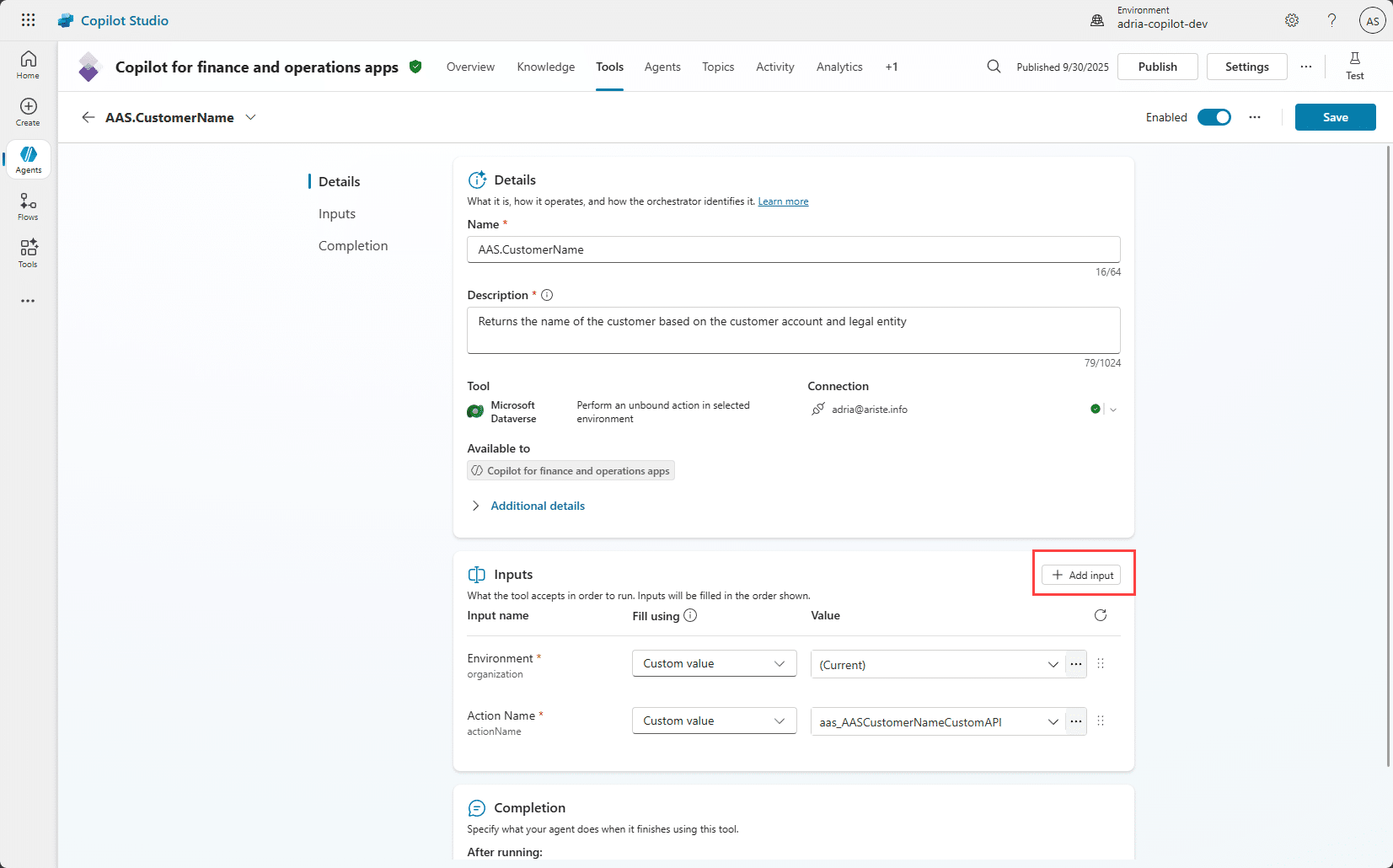

Click your action’s name, and let’s check what we can do with the inputs. By default inputs are set to Dynamically fill with AI, which means that the agent will decide which values go there. We can also select Custom value:

Let’s do this for the companyId field. Remember I said that it takes the default company on user info? We’re going to change this and select the company in which the user was talking to the bot.

Click the three dots in the value field, and look for dataAreaId in the Custom tab. You should find only one result: PA_Copilot_ServerForm_UserContext.dataAreaId.

This variable contains the company in which the user was when they asked the agent.

Don’t forget to click the Save button before leaving this page!

Create a topic

Now the action is there, and we need the agent to be able to know when to use it. That’s what topics are used for.

Add a new topic

Go to the Topics tab and click the Add a topic button, selecting the From blank option. Give the new topic a name.

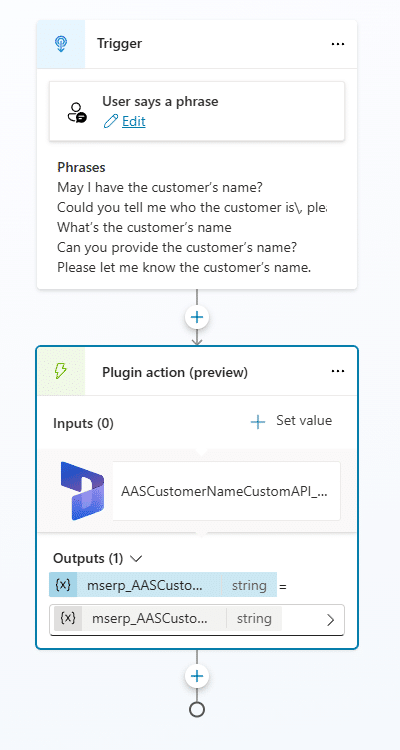

You can see the topic designer looks a bit like the Power Automate one, and it also starts with a trigger:

Here we need to introduce the phrases that will start our AI tool action. For example, “What’s the name of the customer”, and plenty of variations.

How can you get most of them? With AI! What I do is just ask ChatGPT for variations of one or two examples and use those, and then ask it to put the variations in a file with no quotes. Then I paste it all in Copilot Studio.

Then click the + button below the trigger, go to Add a tool, select the Tool tab and choose yours:

Done! Don’t forget to click Save.

Publish the agent

Even if we clicked Save a thousand times in Copilot Studio, if we go to the F&O sidecar chat and try to run our tool, it will run nothing.

To apply the changes, we need to click the Publish button in the top right area, near the Test one:

Testing the agent

Everything is ready! Now click the Test button in the top right corner. A new pane will open. Here we’ll test the bot, asking, “What’s the name of customer US-001?” and we’ll get it!

Sure? Well, no. Remember we set that the company field would come from the user context in F&O? This is what happens:

It gets an empty companyId, and when it calls the X++ code, the changecompany method is called with an empty value, and it fails. Also because I added no try-catch block, but that’s a different story.

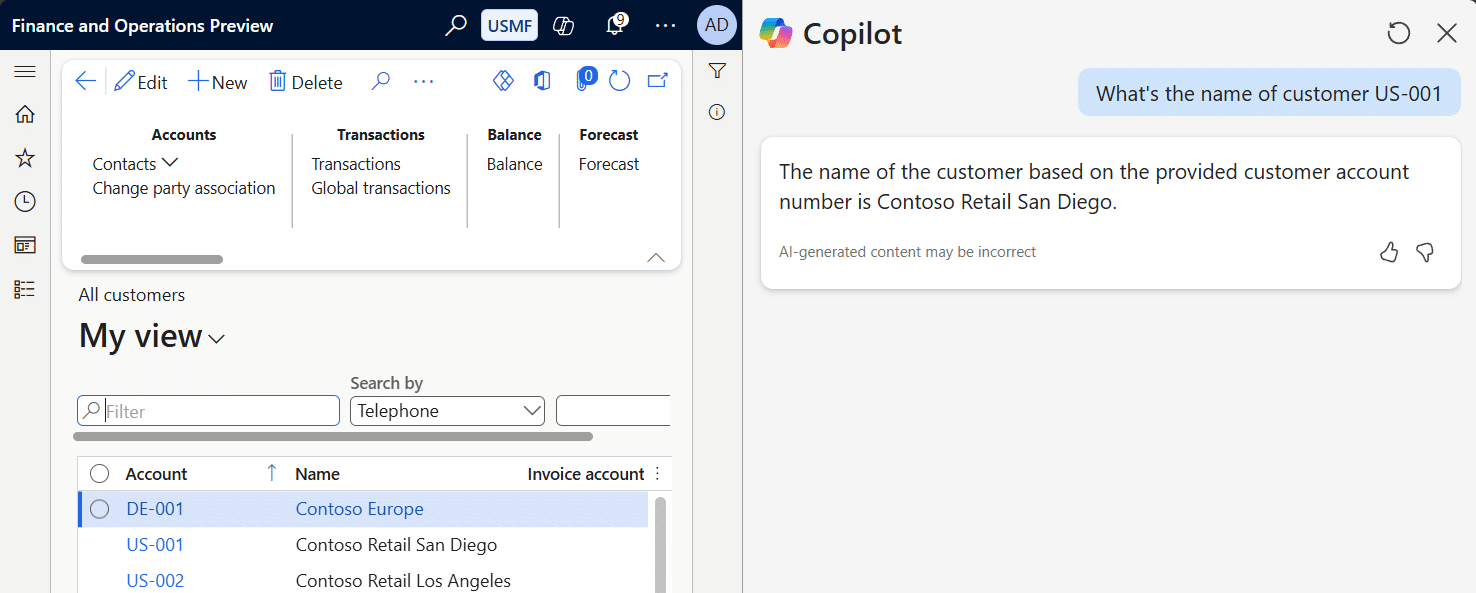

Go to F&O, and ask the same question in the sidecar chat:

But wait, every time I want to test something that uses the context, I have to publish the agent and go to F&O? Well, what you can do is set all the inputs in the tool to use a dynamically filled value while testing it inside Copilot Studio and change it before publishing.

Conclusion

And we’re done! We’ve seen how to create and deploy an X++ AI tool from scratch, configure its inputs, set up security, and integrate it into Copilot Studio.

My example was intentionally simple, but I wanted to show all the fundamental steps needed to build more advanced AI integrations.

Finding the perfect use case will be the trickiest part of the process, but now you’ve got the basics down, and I’m sure you’ll discover many valuable scenarios to use this.

See you in the next post!
